DIN 2510 Bolting Components Bolts, Hexagon Nuts, Cap Nuts, Extension sleeves, Studs and Stud Bolts

Stud Bolts Made of ASTM A453 Grade 660 Grade Class C Stainless Steel
DIN 2510 Bolting Components: Bolts, Hexagon Nuts, Cap Nuts, Extension sleeves, Studs and Stud Bolts

DIN 2510 Bolting components and connections with expansion shank are suitable for use at elevated temperatures with high pressure and with optimum Charpy Notch Impact strength for cryogenic applications. Screw connections with reduced shank in DIN 2510 standard are primarily used in situations where bias voltage is applied and where durability of screw connections has to be extensively secured under varying mechanical and thermal stress environments. DIN 2510 Reduced Shank Bolts show good durability when combined with high temperature resistant material in accordance with EN 10269-specification material. The bias drop is quite low and hence it contributes significantly to the loosening of the screw connections during working operation by creep factors of the material, settling in the force-transmitting surfaces of the connection and the strained parts, and by bending the threads.

DIN 2510 Design Criteria if PED 2014/68/EU Merkblatt AD-2000 W2 & W7 DIN 2510 Bolting Components

When designing expansion bolts and expansion bolts, the following points should be noted:

  • The minimum expansion shaft length should be Double or four times the thread diameter, in order to obtain sufficient elasticity.
  • The ratio of thread core diameter to shank diameter should be about 1:1 in view of the load capacity and elasticity of the screw.
  • The transition angle between the expansion shaft and the thread should be relatively small. This results in a favorable flow of force and a better load distribution in the screwed thread.

A wide range of PED 2014/68/EU Merkblatt AD-2000 W2 & W7 certified components with multiple combinations can be manufactured under DIN 2510 Specification originated in 1974.
With due reference from DIN 2510, total five different parts can be manufactured as listed under:

Din 2510 PART 3 STUD BOLTS
Form/ Type L, K, Z, KU, ZU
Dimensions Dia M6 - M200
Length: upto M56 – 1000mm or 1 meter long
Length: Above M64 – 2000mm or 2 meter long
Centre Heating hole for sizes M64 & above can be manufactured on request
Din 2510 PART 3 STUD BOLTS Form/ Type L, K, Z, KU, ZU

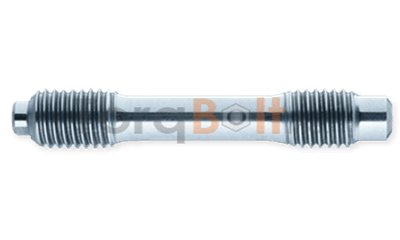

Din 2510 PART 4 STUDS
Form/ Type HP, HQ, HR, HS, GP, GQ, GR, GS
Dimensions Dia M6 - M200
Length: upto M56 – 1000mm or 1 meter long
Length: Above M64 – 2000mm or 2 meter long
Centre Heating hole for sizes M64 & above can be manufactured on request
Din 2510 PART 4 STUDS Form/ Type HP, HQ, HR, HS, GP, GQ, GR, GS
Din 2510 PART 5 HEXAGON NUTS
Form/ Type NF & TF
Dimensions Dia M6 – M56 in form YK, KG & GA
Dimensions Dia M64 & above in standard form
Din 2510 PART 5 HEXAGON NUTS Form/ Type NF & TF

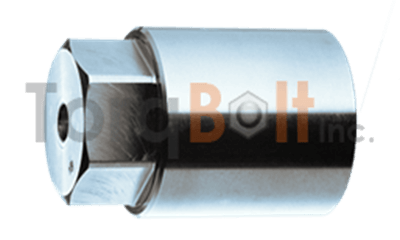

Din 2510 PART 6 CAP NUTS
Form/ Type: AF, BF, AFO, BFO
Dimensions: for screws upto Dia M6 – M200
Din 2510 PART 6 CAP NUTS Form/ Type: AF, BF, AFO, BFO

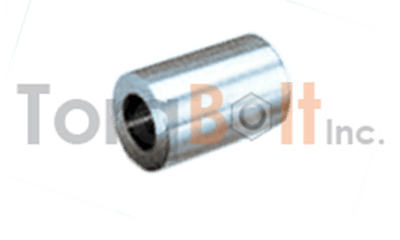

Din 2510 PART 7 EXTENSION SLEEVE
Form D & E
Dimensions: for screws upto Dia M6 – M200
Din 2510 PART 7 EXTENSION SLEEVE Form D & E

DIN 2510 Bolting Component Grades woth PED certification complying Merkblatt AD 2000 W2 & W7 requirements.

DIN 2510 Materials click heading to view

Heat Treated Steels

Werkstoff Number Name Mark
1.0501 C 35 Y
1.0503 C 45
1.054 C 50
1.0601 C 60
1.1151 C22E (Ck 22)
1.1181 C35E (Ck 35) Yk
1.1191 C45E (Ck 45)
1.1221 C22E (Ck 22)
1.6511 36CrNiMo4
1.658 30CrNiMo8
1.6582 34CrNiMo6
1.7033 34Cr4
1.7035 41Cr4
1.7218 25CrMo4
1.722 34CrMo4
1.7225 42CrMo4
1.7227 42CrMoS4
1.7228 50CrMo4

Low temperature Steels

  Werkstoff Short name Character(Symbol) AD-2000 Specification Equivalent
-40 °C 1.6582 34CrNiMo6 - - DIN EN 10269 -
  1.658 30CrNiMo8 - - DIN EN 10269 -

-60°C 1.7218 25CrMo4 KG W10 DIN EN 10269 ∼SAE 4130
  1.7258 24CrMo5 G - zurückgezogen -
  1.7219 26CrMo4 KA - zurückgezogen -

-100°C 1.7225 42CrMo4 GC - DIN EN 10269 ∼ASTM A320 L7

-120°C 1.568 X12Ni5 KB W10 DIN EN 10269 ∼SAE 2515

-196°C 1.4301 X5CrNi18-10 A2 W10 DIN EN 10269 ∼AISI 304
  1.4307 X2CrNi18-9 A2 W10 DIN EN 10269 ∼AISI 304 L
  1.4401 X5CrNiMo17-12-2 A4 W10 DIN EN 10269 ∼AISI 316
  1.4404 X2CrNiMo17-12-2 A4 W10 DIN EN 10269 ∼AISI 316 L
  1.498 X6NiCrTiMoVB25-15-2 SD - DIN EN 10269 ∼AISI 660
  2.4952 NiCr20TiAl SB - DIN EN 10269 ∼Alloy 80A
  2.4669 NiCr15Fe7TiAl - - DIN EN 10269 ∼Alloy X-750

-270°C 1.4429 X2CrNiMoN17-13-3 - W10 DIN EN 10269 ∼AISI 316 LN
  1.491 X3CrNiMoBN17-13-3 - W10 DIN EN 10269 -

Heat resistant steels

  Werkstoff Short name Character(Symbol) AD-2000 Specification Equivalent
600°C 1.4913 X19CrMoNbVN11-1 VW - DIN EN 10269 -
  1.7711 40CrMoV4-6 GB - DIN EN 10269 -

500°C 1.4923 X22CrMoV12-1 V / VH W7 DIN EN 10269 -
  1.7225 42CrMo4 GC W7 DIN EN 10269 ∼ASTM A193 B7
  1.7709 21CrMoV5-7 GA W7 DIN EN 10269 -

400°C 1.4404 X2CrNiMo17-12-2 A4 W2 DIN EN 10269 ∼AISI 316 L
  1.4429 X2CrNiMoN17-13-3 - W2 DIN EN 10269 ∼AISI 316 LN
  1.4571 X6CrNiMoTi17-12-2 A5 W2 DIN EN 10088-3 ∼AISI 316 Ti
  1.4541 X6CrNiTi18-10 - W2 DIN EN 10088-3 ∼AISI 321
  1.4539 X1NiCrMoCuN25-20-5 - W2 DIN EN 10088-3 ∼AISI 904 L
  1.7218 25CrMo4 KG W7 DIN EN 10269 ∼SAE 4130
  1.7258 24CrMo5 G - zurückgezogen -
  1.7219 26CrMo4 KA - zurückgezogen -
  1.5511 35B2 YB W7 DIN EN 10269 -
  1.1181 C35E YK W7 DIN EN 10269 -

350°C 1.4548 X5CrNi CuNb17-4-4 - - WL 1.4548 Teil 2 ∼AISI 630 / 17-4 PH
  1.4542 X5CrNiCuNb16-4 - - DIN EN 10088-3 ∼AISI 630 / 17-4 PH
  1.1191 C45E - - DIN EN 10269 -

300°C 1.4401 X5CrNiMo17-12-2 A4 W2 DIN EN 10269 ∼AISI 316
  1.4301 X5CrNi18-10 A2 W2 DIN EN 10269 ∼AISI 304

High temperature steels

Werkstoff Number Short name Mark/ Brand Name
1.491 X3CrNiMoN1713
1.4913 X19CrMoVNbN11-1 VW
1.4923 X22CrMoV12 1 V
1.4948 X6CrNi1811 Avesta 18-8
1.4958 X5NiCrAlTi31-20 Incoloy 800 H
1.4959 X8NiCrAlTi32-21 Incoloy 800 HT
1.4961 X8CrNiNb1613 K
1.498 X5NiCrTi2615 SD
1.4981 X8CrNiMoNb1616 O
1.4986 X8CrNiMoBNb1616 S
2.4952 NiCr20TiAl Nimonic 80A
2.4669 NiCr15Fe7TiAl Inconel X-750
2.4633 NiCr25FeAlY Alloy 602 CA
(Nicrofer 6025 HT)
2.4663 NiCr23Co12Mo Inconel 617
2.4668 NiCr19NbMo Inconel 718
2.4665 NiCr19NbMo Hastelloy X

Non Magnetic Steels

Werkstoff Number Short name Brand Name
1.3948 X4CrNiMnMoN 19 13 8
1.3952 X2CrNiMoN 18 14
1.3957 X2CrNiMoNbN 21 15
1.3964 X2CrNiMnMoNNb21 16 5 3
1.3974 X3CrNiMoNbN 23 17

Heat resistant steels and nickel alloys

Werkstoff Number Short name Brand Name
1.4713 X10CrAlSi7 SICRO 8
1.4724 X10CrAlSi13 SICRO 9
1.4742 X10CrAlSi18 SICRO 10
1.4762 X10CrAlSi25 SICRO 12
1.4821 X15CrNiSi25-4
1.4828 X15CrNiSi20-12 AISI 309
1.4835 X9CrNiSiNCe21-11-2 253 MA
1.4841 X15CrNiSi2521 AISI 314 (310)
1.4845 X8CrNi25-21 AISI 310S
1.4864 X12NiCrSi35-16 AISI 330
1.4876 X10NiCrAlTi32-21 Incoloy 800
1.4876 H X10NiCrAlTi3220 Incoloy 800 H
1.4876 HT X8NiCrAlTi3221 Incoloy 800 HT
1.4878 X8CrNiTi18-10
2.4816 NiCr15Fe Inconel 600
2.4851 NiCr23Fe Inconel 601
2.4856 NiCr22Mo9Nb Inconel 625
2.4951 NiCr20Ti Nimonic 75

Rust & Acid Resistant Materials

Werkstoff Number Short name Mark/Brand Name
1.4006 X12Cr13
1.4016 X6Cr17
1.4021 X20Cr13 AISI 420
1.4024 X15Cr13
1.4028 X30Cr13
1.4034 X46Cr13
1.4057 X17CrNi16-2 AISI 431
1.4104 X14CrMoS17 AISI 430F
1.4112 X90CrMoV18
1.4122 X35CrMo17-1
1.4301 X5CrNi18-10 AISI 304
1.4305 X8CrNiS18-9 AISI 303
1.4306 X2CrNi19-11 AISI 304L
1.431 X10CrNi18-8
1.4313 X3CrNiMo13-4
1.4361 X1CrNiSi18-15-4
1.4362 X2CrNiN23-4 SAF 2304
1.4371 X2CrMnNiN17-7-5
1.4401 X5CrNiMo17-12-2 AISI 316
1.4404 X2CrNiMo17-12-2 AISI 316L
1.441 X2CrNiMoN25-7-4 SAF 2507
1.4418 X4CrNiMo16-5-1
1.4429 X2CrNiMoN17-13-3 AISI 316LN
1.4435 X2CrNiMo18-14-3 AISI 316L
1.4436 X3CrNiMo17-13-3 AISI 316
1.4438 X2CrNiMo18-15-4 AISI 317L
1.4439 X2CrNiMoN17-13-5 AISI 317LNM
1.446 X3CrNiMoN27-5-2 AISI 329
1.4462 X2CrNiMoN22-5-3 SAF 2507
1.4501 X2CrNiMoCuWN25-7-4 Zeron 100
1.4507 X2CrNiMoCuN25-7-4
1.4529 X1NiCrMoCuN25-20-7 Alloy 926
1.4539 X1NiCrMoCu25-20-5 Uranus B6
1.4541 X6CrNiTi18-10 AISI 321
1.4542 X5CrNiCuNb16-4 17-4PH
1.4547 X1CrNiMoCuN20-18-7 254SMO
1.455 X6CrNiNb18-10 AISI 347/348
1.4562 X1NiCrMoCu32-28-7 Alloy 31
1.4563 X1NiCrMoCu31-27-4 Sanicro 28
1.4571 X6CrNiMoTi17-12-2 AISI 316 Ti
1.4578 X3CrNiCuMo17-11-3-2
1.458 X6CrNiMoNb17-12-2
1.4586 X5NiCrMoCuNb2218

Duplex and Super Duplex Steels

Werkstoff Number Short name Brand Name
1.4362 X2CrNiN23-4 SAF 2304
1.441 X2CrNiMoN25-7-4 SAF 2507
1.446 X3CrNiMoN27-5-2 AISI 329
1.4462 X2CrNiMoN22-5-3 SAF 2507
1.4501 X2CrNiMoCuWN25-7-4 (Zeron 100)

High corrosion resistant nickel alloys

Werkstoff Number Short name Brand Name
2.4066 Ni 99,2 Nickel 200
2.4068 LC-Ni 99 Nickel 201
2.436 NiCu30Fe Monel 400
2.4375 NiCu30Al MonelK 500
2.46 NiMo29Cr Hastelloy B-3
2.4602 NiCr21Mo14W Hastelloy C-22
2.4603   Hastelloy G-30
2.4605 NiCr23Mo16Al Alloy 59
2.4606   Inconel 686
2.461 NiMo16Cr16Ti Hastelloy C-4
2.4617 NiMo28 Hastelloy B-2
2.4619 NiCr22Mo7Cu Hastelloy G-3
2.4630  (2.4951) NiCr20Ti Nimonic 75
2.4631  (2.4952) NiCr20TiAl Nimonic 80A
2.4632  (2.4969) NiCr20Co18Ti Nimonic 90
2.4633 NiCr25FeAlY (Nicrofer6025 HT) Alloy 602 CA
2.4634 NiCo20Cr15MoAlTi Nimonic 105
2.4654 NiCr19Co14Mo4Ti Waspaloy
2.4658 NiCr7030 Cronix70
2.466 NiCr20CuMo 20Cb3/Alloy 20
2.4663 NiCr23Co12Mo Inconel 617
2.4665 NiCr19NbMo Hastelloy X
2.4668 NiCr19NbMo Inconel 718
2.4669 NiCr15Fe7TiAl Inconel X-750
2.4675 NiCr23Mo16Cu Hastelloy C-2000
2.4816 NiCr15Fe Inconel 600
2.4819 NiMo16Cr15W Hastelloy C-276
2.4851 NiCr23Fe Inconel 601
2.4856 NiCr22Mo9Nb Inconel 625
2.4858 NiCr21Mo Incoloy 825
2.4951 NiCr20Ti Nimonic 75
2.4952 NiCr20TiAl Nimonic 80A
2.4969 NiCr20Co18Ti Nimonic 90

Titanium & Titanium Alloys

Werkstoff Number Short name ASTM Werkstoff Number
3.7035 Titan Titan Gr.2
3.7165 TiAl6V4 Titan Gr.5
3.7235 Ti2Pd Titan Gr.7

Special Metals

Werkstoff Number Brand Name UNS Number
1.4542 17-4PH UNS S17400
1.4547 254 SMO UNS S31254
  AerMet100 Alloy UNS K92580
  Ferralium 255
1.6772 Monix 3 K
1.3964 Nitronic50
  Nitronic60 UNS S21800
1.4462 SAF 2205 UNS S31803
1.4362 SAF 2304 UNS S32304
1.441 SAF 2507 UNS S32750
1.4563 SANICRO 28
  Tantal
  Uranus 50
-1.4501 Zeron 100 UNS S32760
  Zirconium 702 UNS R60702

ASTM / ASME Specification

Grade Identification Specification Products Material Comparative EN Werkstoff
No Grade Mark SAE J429 Grade 1 Bolts,
Screws,
Studs
Low or Medium Carbon Steel ---
ASTM A307 Grade A & B Low Carbon Steel ---
SAE J429 Grade 2 Low or Medium Carbon Steel ---
No Grade Mark SAE J429 Grade 4 Studs Medium Carbon
Cold Drawn Steel
---
B5 ASTM A193 Grade B5 Bolts, Screws, Studs
for High Temperature Service

Class 1:
Carbide solution treated
AISI 501 ~1.7362
B6 ASTM A193 Grade B6 AISI 410 ~1.4006
B7 ASTM A193 Grade B7 AISI 4140, 4142, 4105 ~1.7225
B16 ASTM A193 Grade B16 CrMoVa Alloy Steel ~1.7711
B8 ASTM A193 Grade B8 Class 1 AISI 304 ~1.4301
B8C ASTM A193 Grade B8C Class 1 AISI 347 ~1.4550
B8M ASTM A193 Grade B8M Class 1 AISI 316 ~1.4401
B8T ASTM A193 Grade B8T Class 1 AISI 321 ~1.4541
B8 ASTM A193 Grade B8 Class 2 Bolts, Screws, Studs
for High Temperature Service

Class 2:
Carbide solution
treated and strain hardend
AISI 304 Strain Hardend ~1.4301
B8C ASTM A193 Grade B8C Class 2 AISI 347 Strain Hardend ~1.4550
B8M ASTM A193 Grade B8M Class 2 AISI 316 Strain Hardend ~1.4401
B8T ASTM A193 Grade B8T Class 2 AISI 321 Strain Hardend ~1.4541
L7 ASTM A320 Grade L7 Bolts, Screws, Studs
for Low Temperature Service

Quenched and Tempered
AISI 4140, 4142, 4145 ~1.7225
L7A ASTM A320 Grade L7A AISI 4037 ---
L7B ASTM A320 Grade L7B AISI 4137 ~1.7220
L7C ASTM A320 Grade L7C AISI 8740 ~1.6546
L43 ASTM A320 Grade L43 AISI 4340 ~1.6580
B8 ASTM A320 Grade B8 Class 1 Bolts, Screws, Studs
for Low Temperature Service

Class 1:
Carbide solution treated
AISI 304 ~1.4301
B8C ASTM A320 Grade B8 Class 1 AISI 347 ~1.4550
B8T ASTM A320 Grade B8 Class 1 AISI 321 ~1.4541
B8F ASTM A320 Grade B8 Class 1 AISI 303 (Se) ~1.4305
B8M ASTM A320 Grade B8 Class 1 AISI 316 ~1.4401
B8 ASTM A320 Grade B8 Class 1 Bolts, Screws, Studs
for Low Temperature Service

Class 2:
Carbide solution
treated and strain hardend
AISI 304 ~1.4301
B8C ASTM A320 Grade B8C Class 2 AISI 347 ~1.4550
B8T ASTM A320 Grade B8T Class 2 AISI 321 ~1.4541
B8F ASTM A320 Grade B8F Class 2 AISI 303 (Se) ~1.4305
B8M ASTM A320 Grade B8M Class 2 AISI 316 ~1.4401
3 Radial Lines 120° SAE J429 Grade 5 Bolts, Screws, Studs Medium Carbon Steel
Quenched and Tempered
---
ASTM A449 ---
3 Radial Lines 90° SAE J429 Grade 5.1 Bolts, Screws, Studs Low or Medium Carbon Steel
Quenched and Tempered
---
3 Radial Lines 60° SAE J429 Grade 5.2 Bolts, Screws, Studs Low Carbon Martensitic Steel
Quenched and Tempered
---
A325 ASTM A325 Type 1 High Strength Structural Bolts Medium Carbon Steel
Quenched and Tempered
---
-- ASTM A325 Type 2
(Withdrawn)
Low Carbon Martensitic Steel
Quenched and Tempered
---
A325 ASTM A325 Type 3 Atmospheric Corrosion Resisting Steel
Quenched and Tempered
---
BD ASTM A354 Grade BD Bolts, Studs Alloy Steel
Quenched and Tempered
---
BC ASTM A354 Grade BC ---
5 Radial Lines SAE J429 Grade 7 Bolts, Screws Medium Carbon Alloy Steel
Quenched and Tempered
---
6 Radial Lines 60° SAE J429 Grade 8 Bolts, Screws, Studs Medium Carbon Alloy Steel
Quenched and Tempered
---
No Grade Mark SAE J429 Grade 8.1 Studs Medium Carbon Alloy or SAE 1041 Modified Elevated Temperature Drawn Steel ---
A490 ASTM A490 High Strength Structural Bolts Alloy Steel Quenched and Tempered ~1.0050
